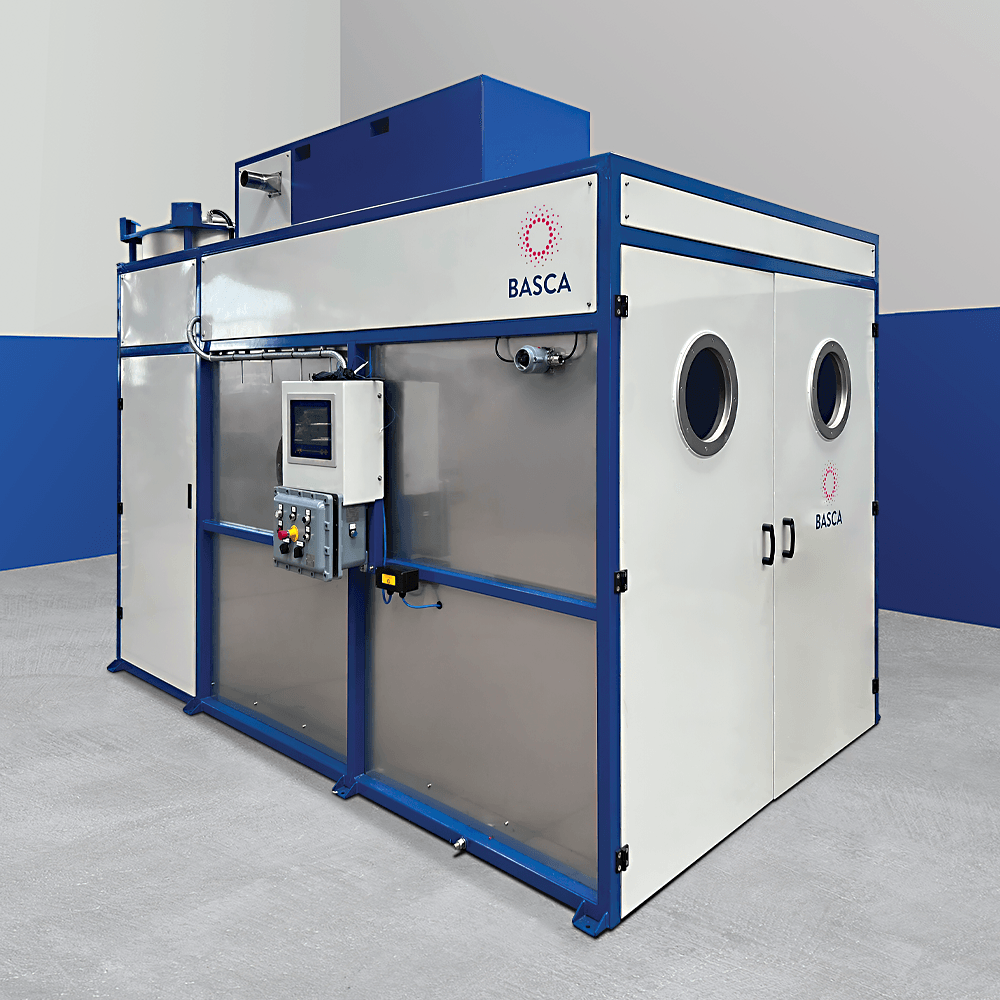

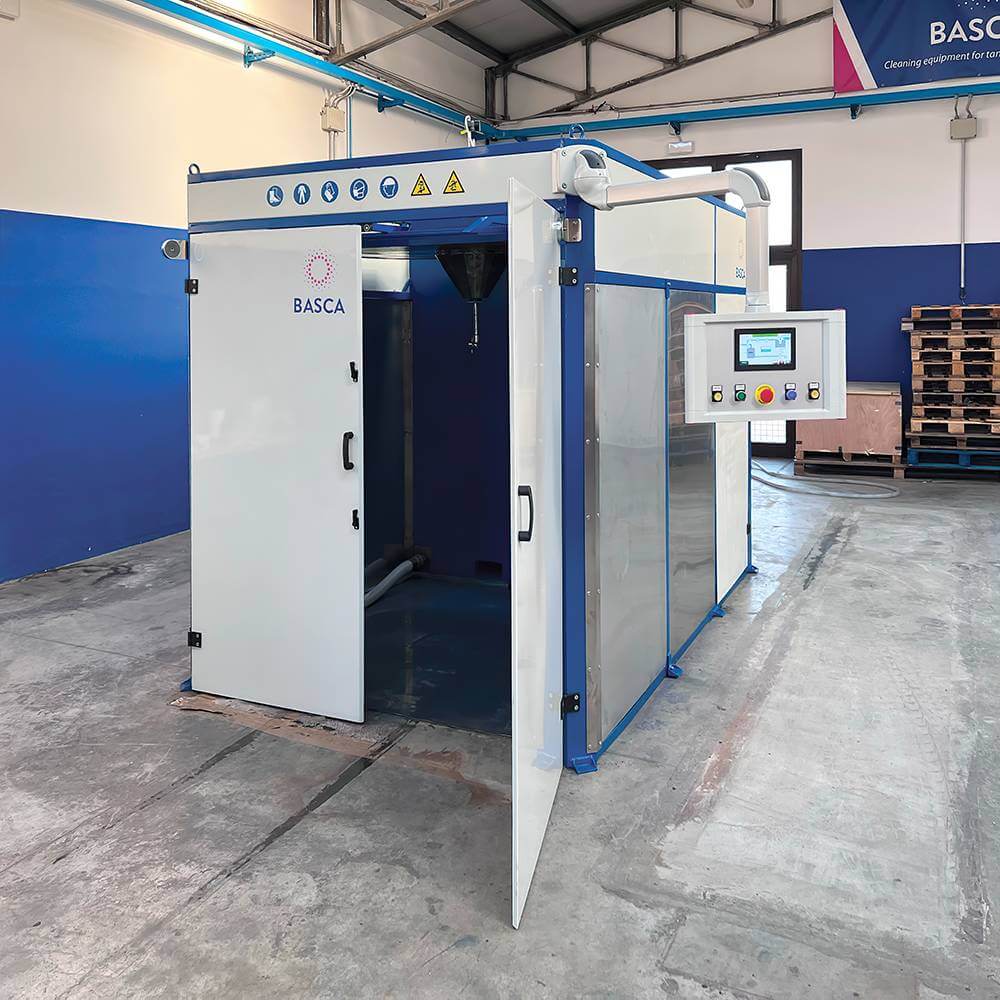

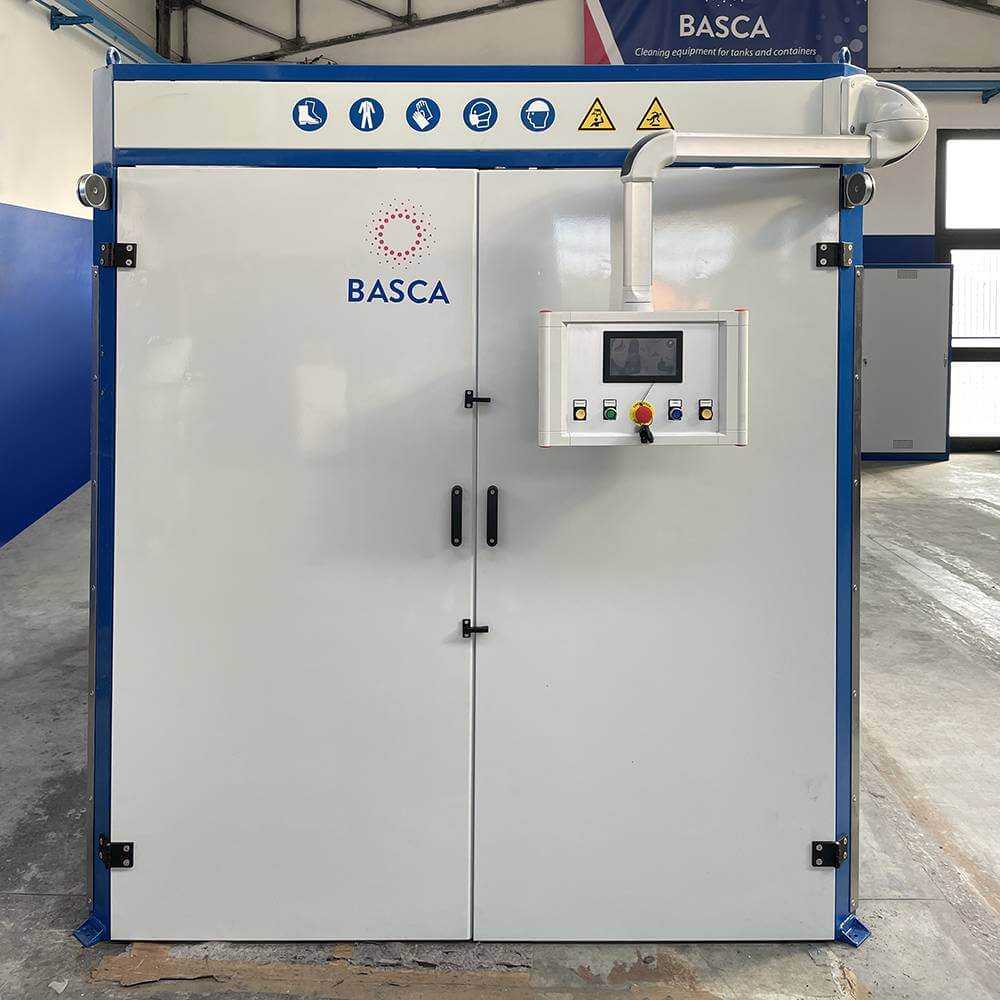

BascaWM

Benefits

5 minutes average cleaning time

80% less waste disposal

75% workforce reduction

Cost efficient

Modular design

Plug & Play technology

Compact layout

Versatile use

https://www.basca.tech/wp-content/uploads/2025/02/drop_small.png

BascaWMSuitable for

BascaLC_sezione2_1_Vessel_1000x1000px-640x640

BascaLC_sezione2_2_IBC_metallic_1000x1000px-640x640

BascaLC_sezione2_3_IBC_plastic_1000x1000px-640x640 (1)

Specification

Water And Eco-Friendly Fluids
Solvents

Size (LxWxH): 3000x2000x2500mm

Electric supply: 3x400 V - 50 Hz (different on request)

Power: 5.5 kW up to 30 kW (based on configuration)

Electrical insulation: IP55

Compressed air supply: 7 bar

Washing pressure: 3 bar up to 250 bar

Max fluid temperature: 80°C

Filtering system: n°2 bag filters with s/steel case

Cycle process: programmable via touch screen

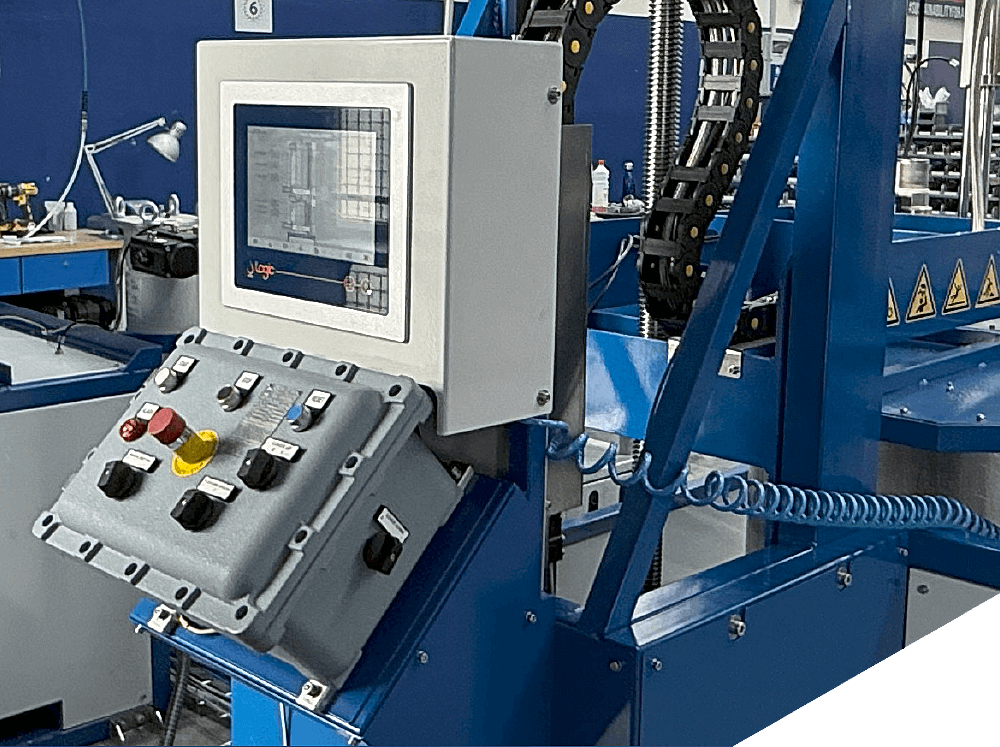

PLC controlled cycle with intuitive HMI

Complying with 2006/42/EC requested safety devices

EX-proof versions according to ATEX directive 2014/34/UE

Size (LxWxH): 3000x2000x2200mm

Compressed air supply: 7 bar

Washing pressure: 3 bar up to 40 bar

Filtering system: n°2 bag filters with s/steel case

Cycle process: programmable

Pneumatic control panel (electric version with hmi available)

Complying with 2006/42/CE requested safety devices

Ex-proof versions according to atex directive 2014/34/UE

BascaWM

Download Datasheet

Download

BascaWM

Download datasheet

Discover all the features and advantages of BascaWM, our top of the range cleaning equipment. Learn how its modular design, high performance, and easy integration can enhance your production process.

Download the brochure now!

System functionPreparing to wash

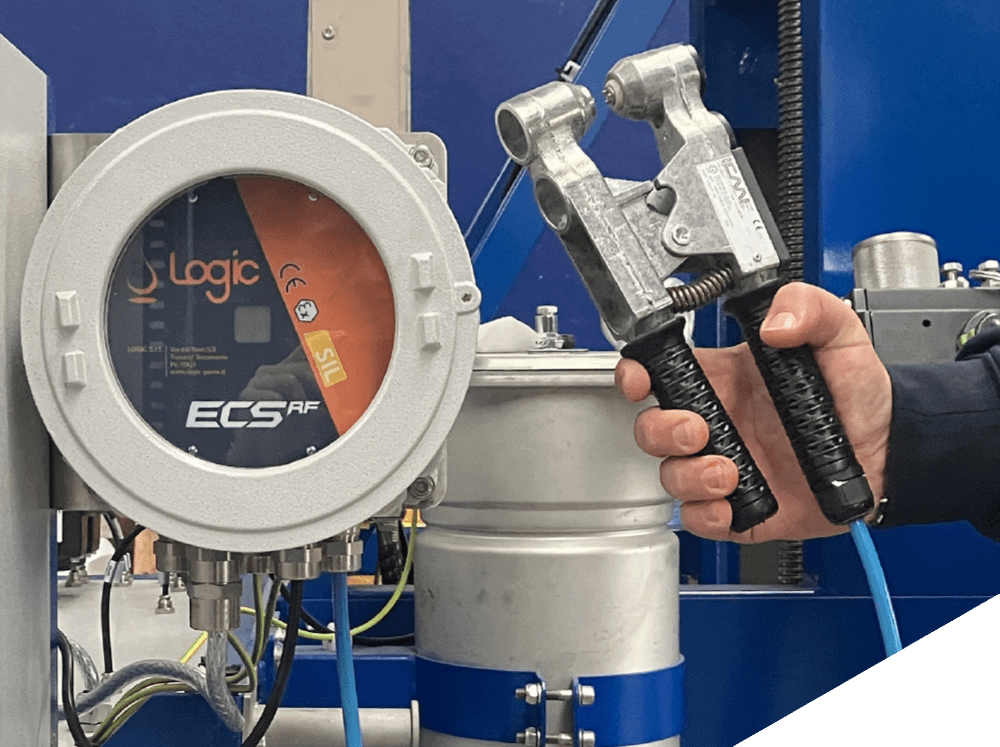

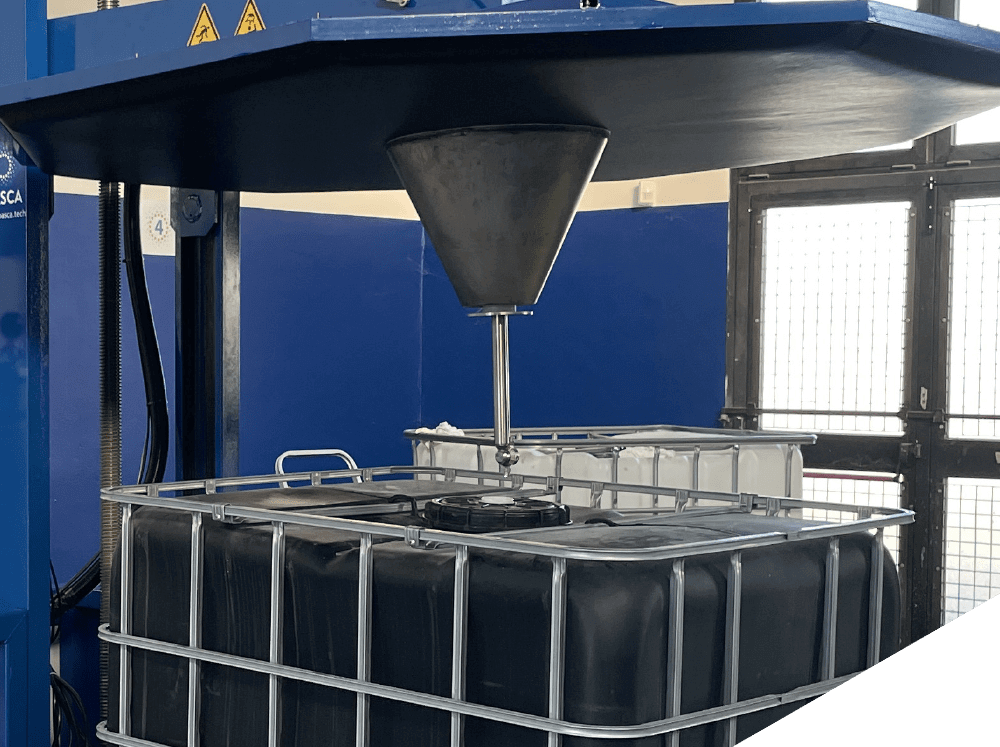

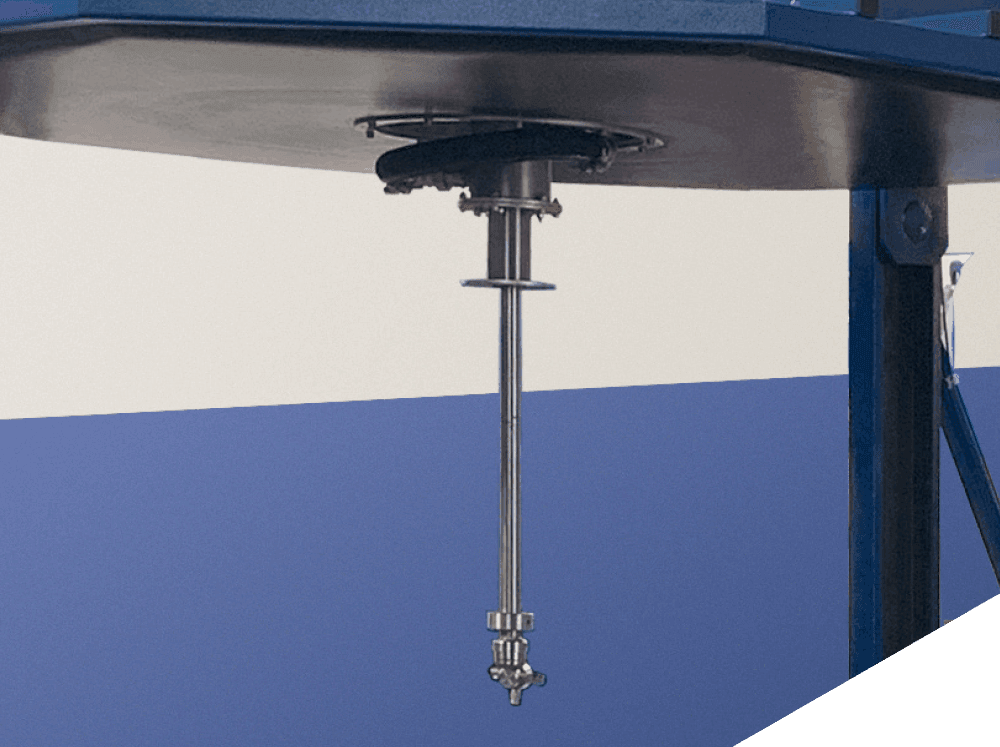

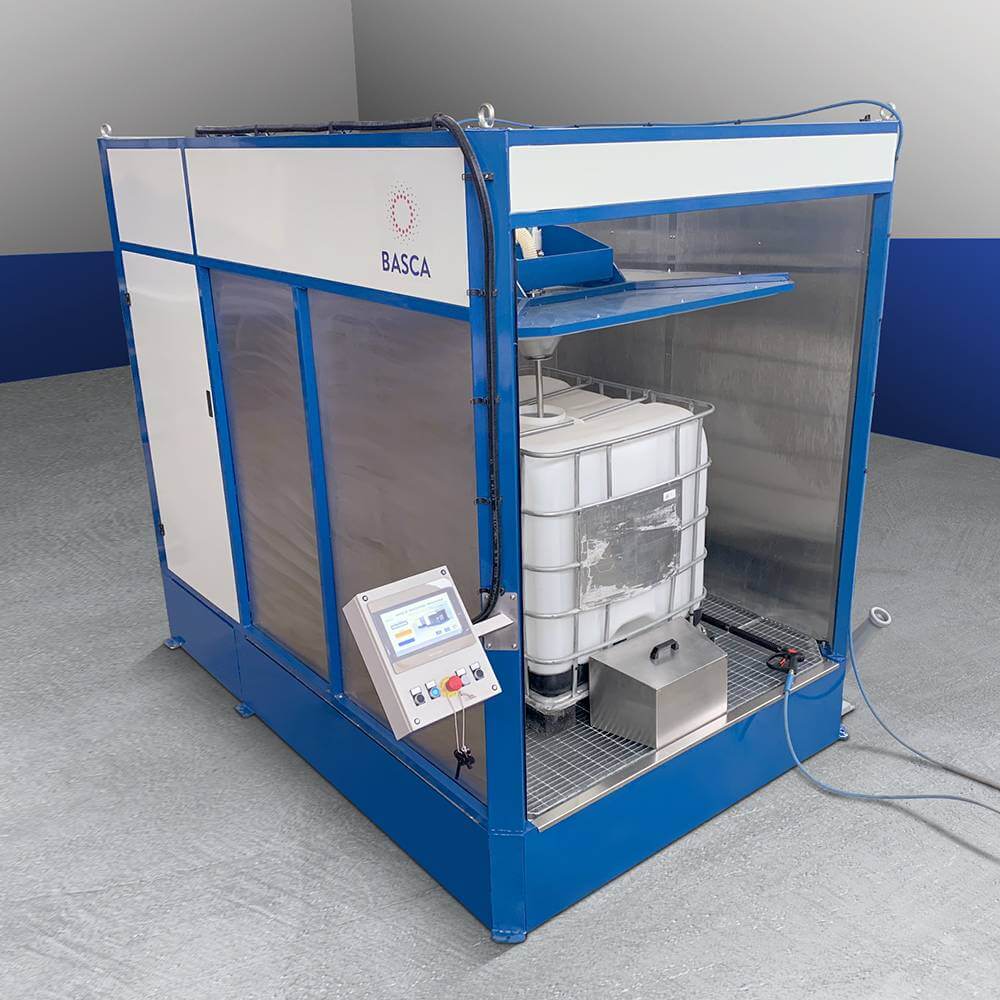

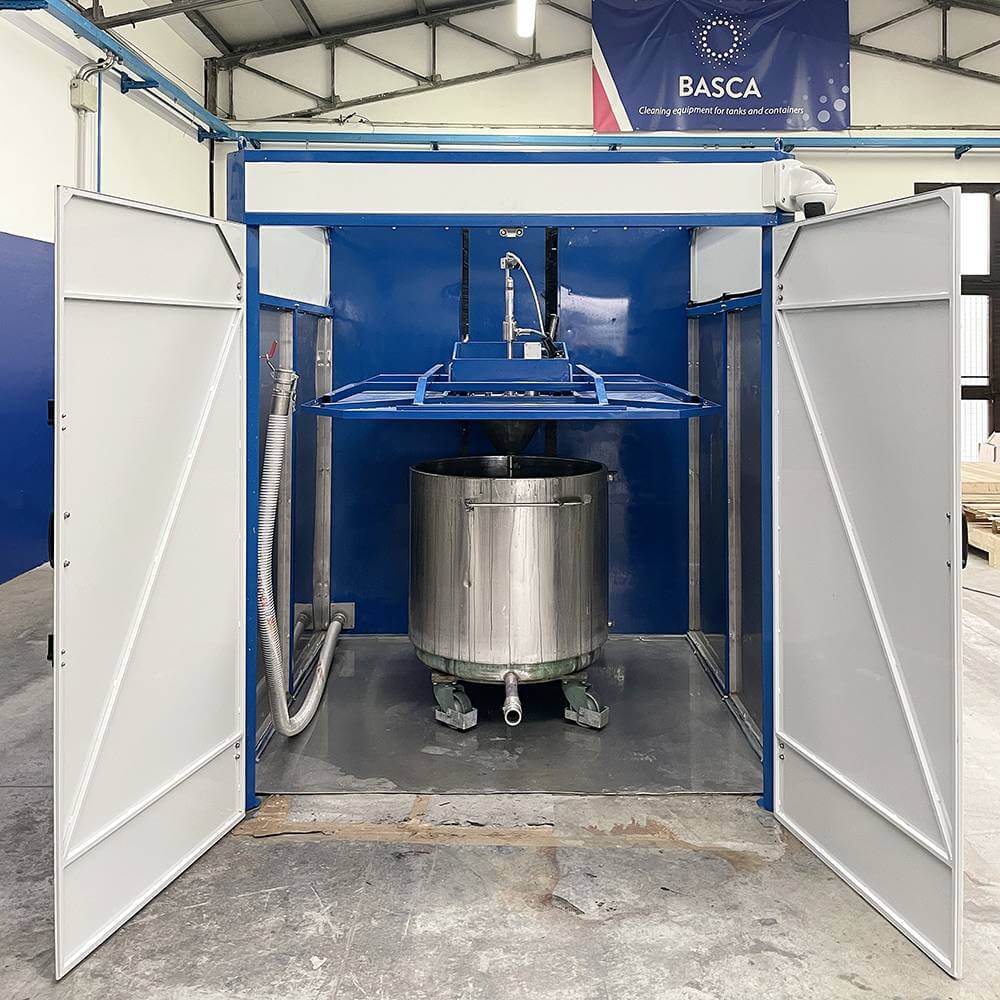

The operator places the container to be washed into the machine, connects the machine return hose to the tank valve, moves down the washing head pushing simultaneously the double button control. The cover stops automatically once the washing head is in correct position. If the machine is ATEX rated, the operator must connect the ground clamp before positioning the container. Choose the cleaning recipe and push the START button to commence the cycle.

System functionWashing cycle

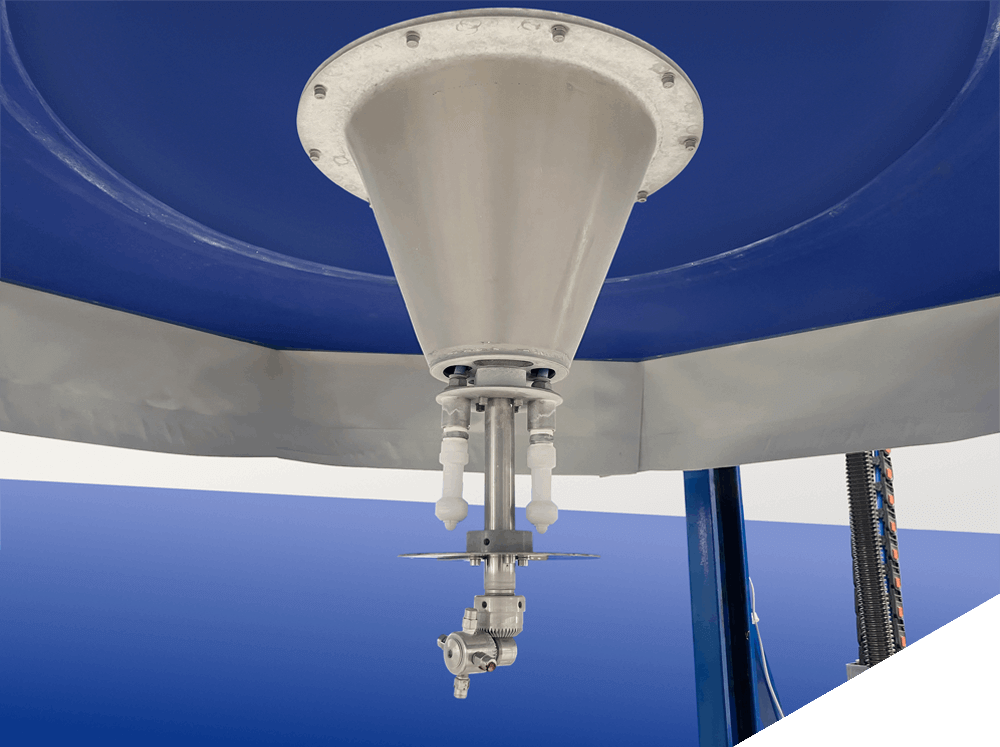

After START has been pushed, the machine checks if all sensors signals are OK then begins to wash. The washing fluid is sucked from its tank into the washing pump and then to the washing head. Thanks to the head motion, that covers a 360° area inside the container, the fluid is sprayed all over the inner tank surface. Washing recipes the cleaning cycle is adapted to washing fluid and container. is filtered and recirculated in closed loop till the end. Thanks to different recipes the cleaning cycle is adapted to washing fluid and container.

System functionRinsing cycle

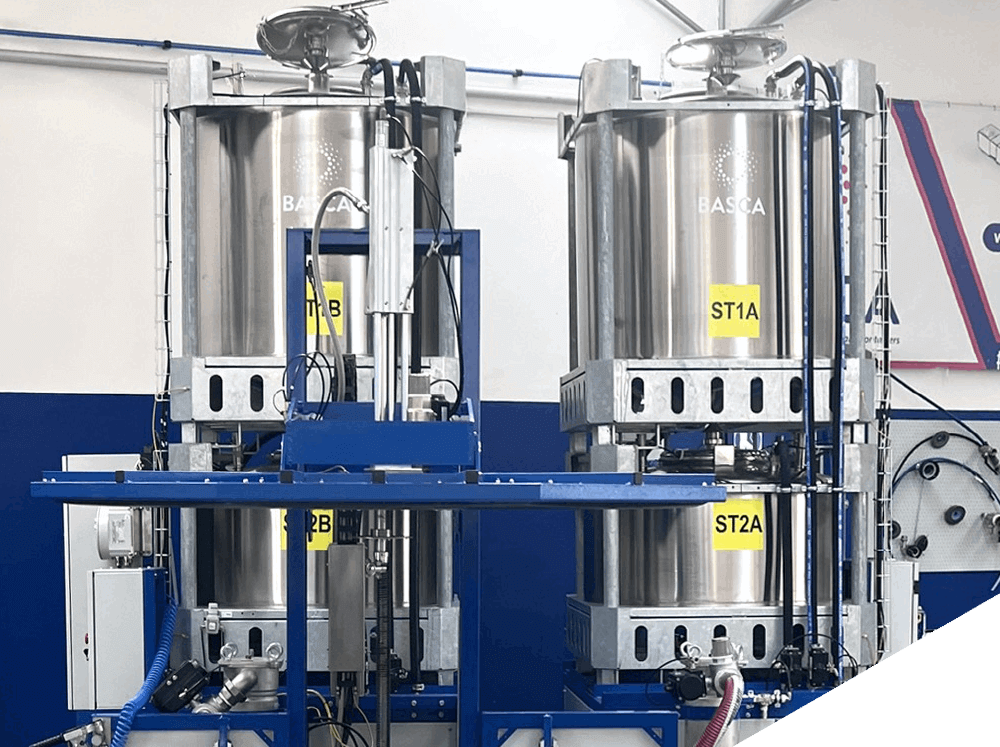

Rinsing is performed automatically after washing, with clean fluid sucked from a second storage tank or directly from the net (if water is used) injected into the main pump and into the washing head. Rinsing fluid is filtered and collected into the washing liquid storage tank or into a specific tank.

System functionEnd of cycle

At the end of the cycle the machine stops and a visual signal on the control panel informs the operator. Now the container is clean and can be removed from the machine.

System functionRegular maintenance

Basca machines are easy to run and to mantain. The machine is equipped with devices and signals to inform the operator when maintenance is required and what is needed to do.
