BascaRec S100/S200

Benefits

Less solvent consumption

Recover large volumes of solvent per cycle

Cut disposal and purchasing costs

Suitable for heavy-duty, continuous operations

Reduce environmental impact and VOC emissions

Easy integration in existing industrial processes

Compliant with CE and ATEX safety standards

Circular economy

https://www.basca.tech/wp-content/uploads/2025/02/drop_small.png

BascaRec S100/S200Suitable for

Specification

Solvents

Size S100 (LxWxH): 2700x1700x2600mm

Size S200 (LxWxH): 2800x1700x2700mm

Air cooled cooper condenser

Stainless steel lid

Heating power: 8 kW to 12 kW

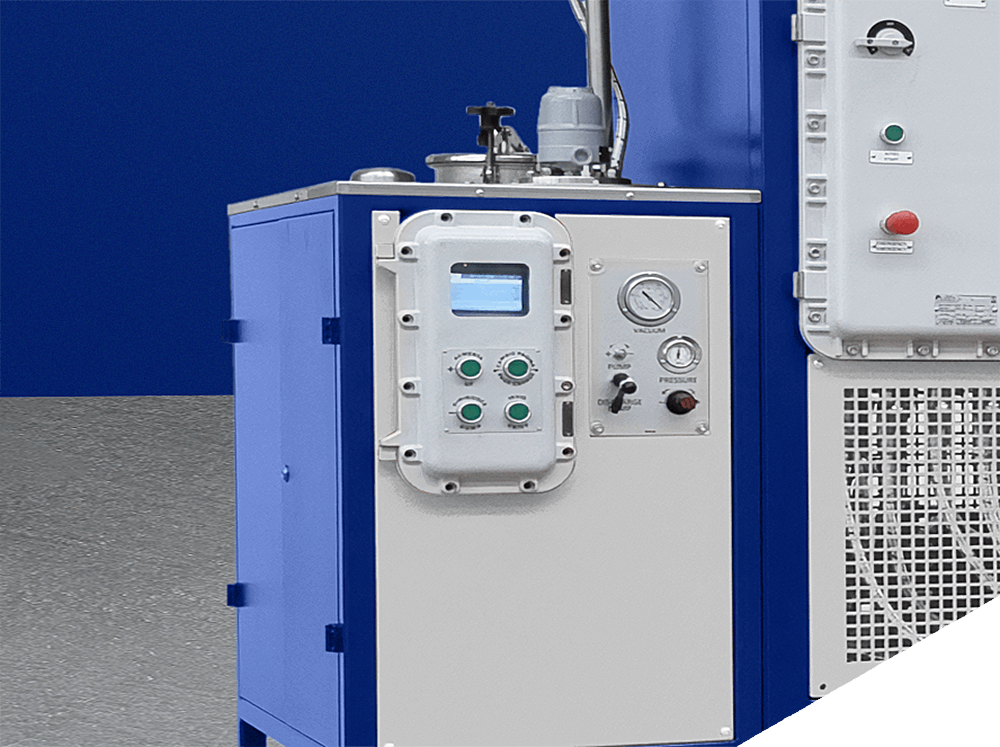

PLC controlled with intuitive hmi

Production capacity: 300 to 800 L/day

Short payback time

BascaWM

Download datasheet

Download

BascaRec S100/S200

Download datasheet

Discover the features and benefits of BascaRec S100/S200, versatile and compact distillers for the recovery of waste solvents. BascaRec systems are developed for companies that need to regenerate the solvents used in their production process.

Download the brochure now!

System functionLoading the solvent

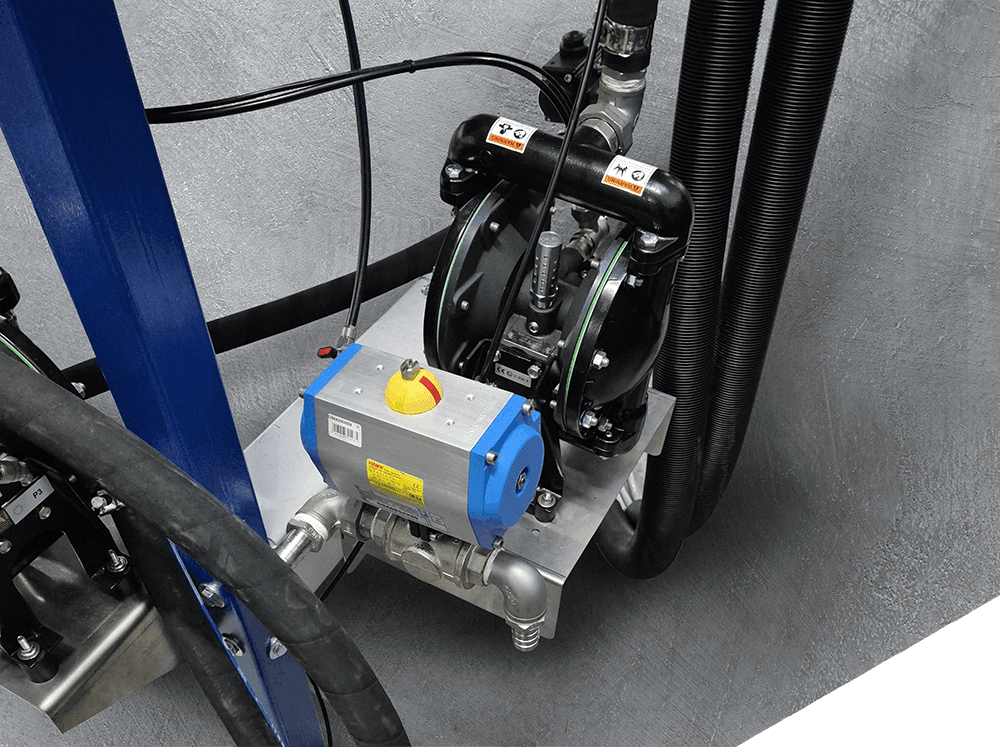

Dirty solvent loading, 100 or 200 liters according to the model, is done with a pneumatic diaphragm pump, ensuring smooth integration into any production workflow.

System functionHeating phase

Electric heating elements heat up the thermal oil in the double jacket of the boiling tank, which ensure safe and gradual temperature increase. The solvent is then brought to its boiling point.

System functionEvaporation and separation

Once the boiling point has been reached, the solvent begins to evaporate, separating from heavy residues such as ink, paint or chemical sludge. These contaminants stay in the boiler, while the clean solvent vapor continues through the process.

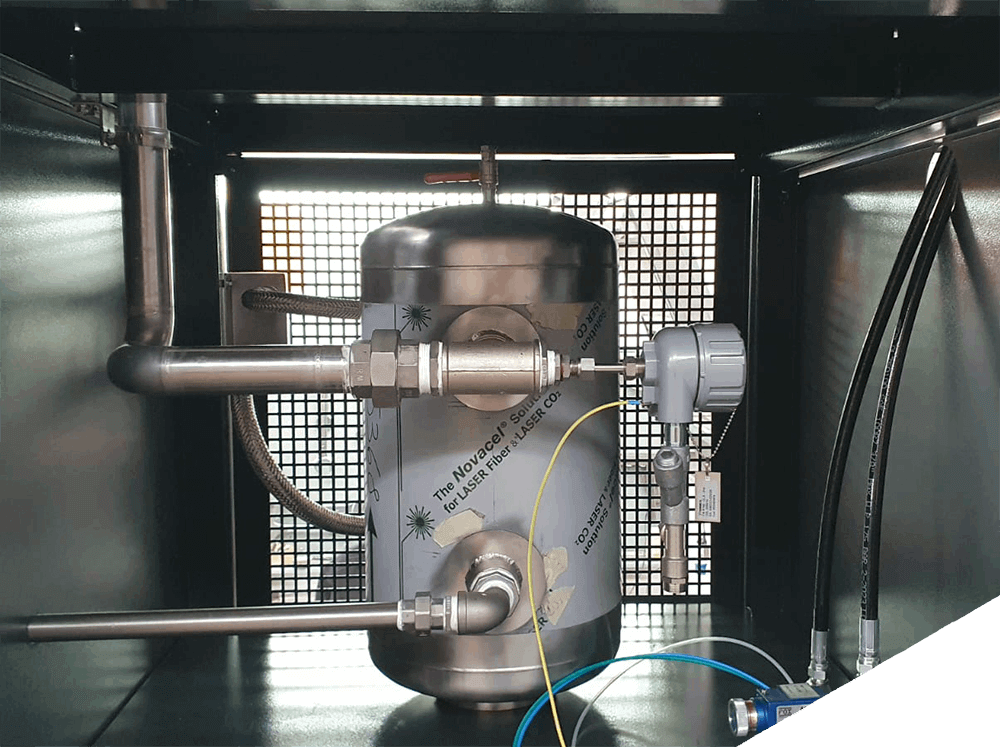

System functionCondensation and recovery

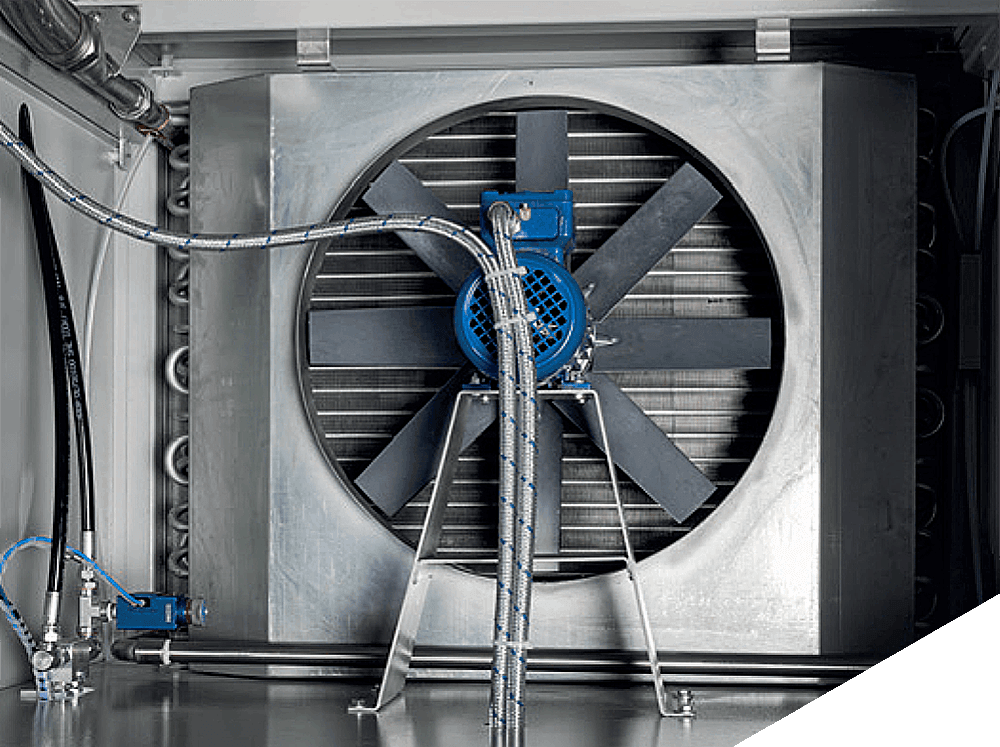

The vapor is routed into a high-efficiency condenser (air- or water-cooled), where it’s cooled and returned to liquid form. The distilled solvent is collected into a tank and is ready for immediate reuse.

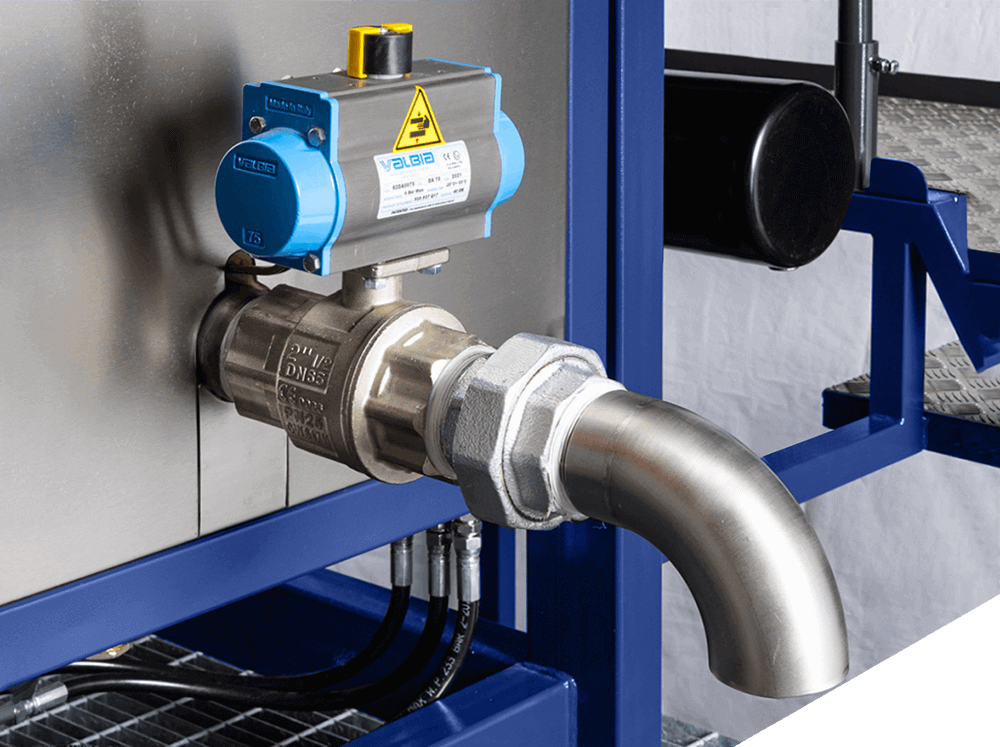

System functionResidue discharge

At the end of the cycle the sludge is discharged into an IBC or Drum, which simplifies cleanup, improves operator safety, and reduces downtime.

System functionIntegrated safety systems

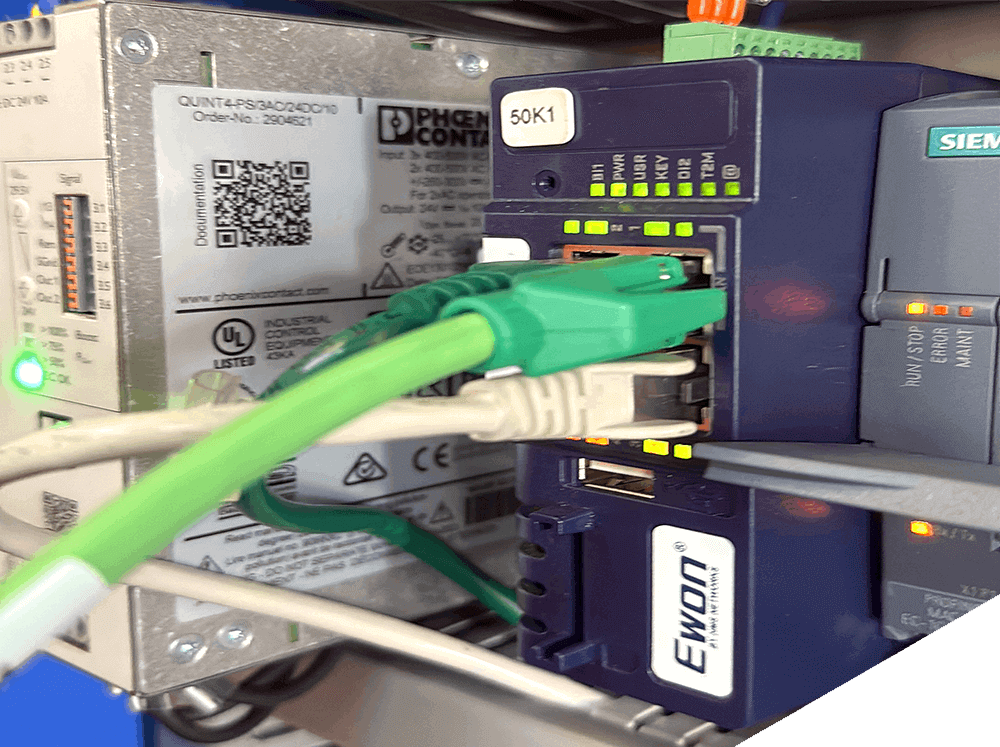

BascaRec S100/S200 units are equipped with multiple safety features to ensure reliable and safe operations like: overpressure valves, overtemperature protection, level sensors, ATEX-certified configuration, and automatic process monitoring via PLC for added security in continuous use settings.
