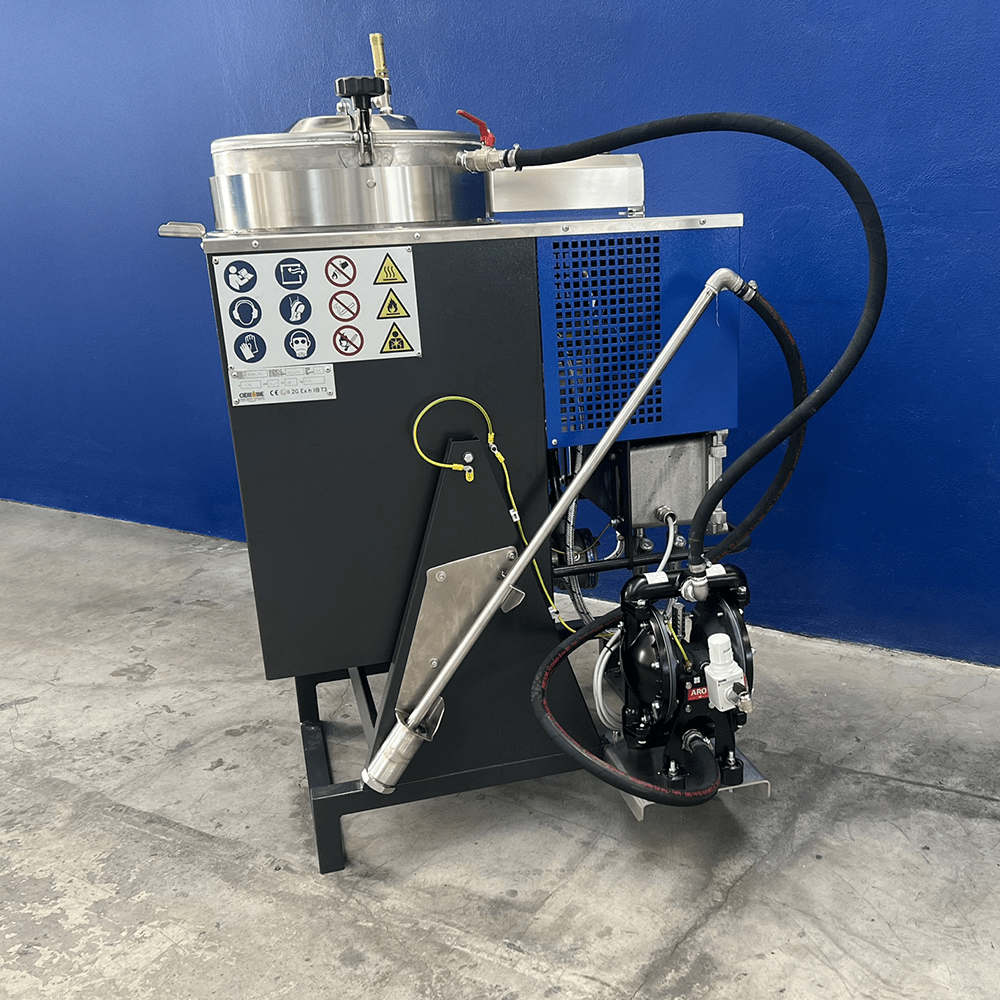

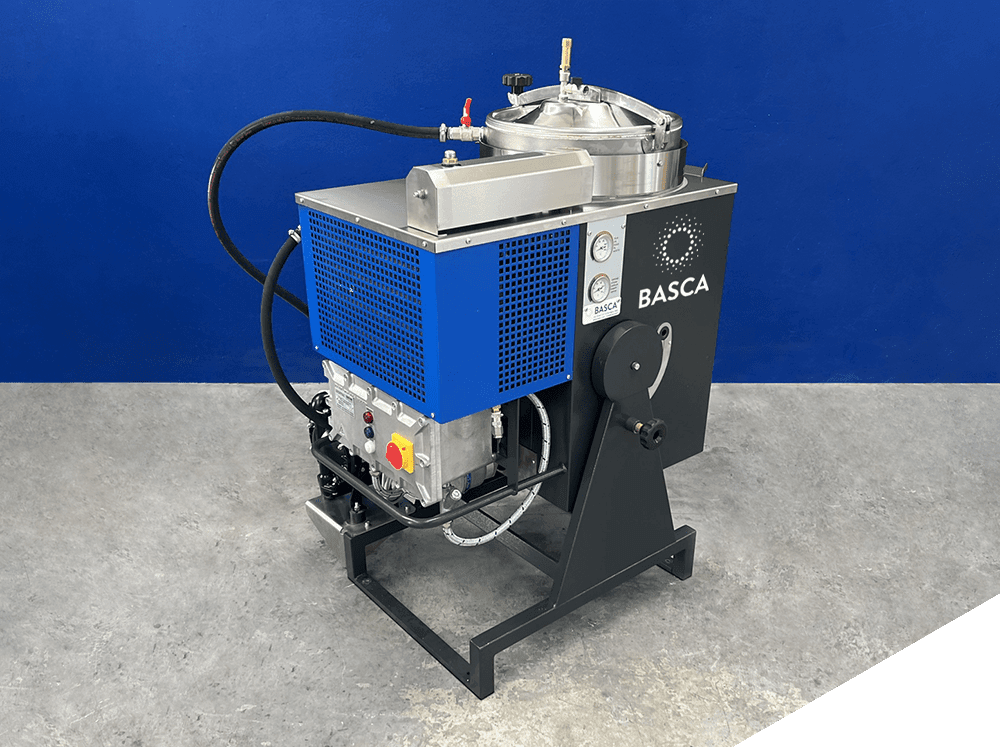

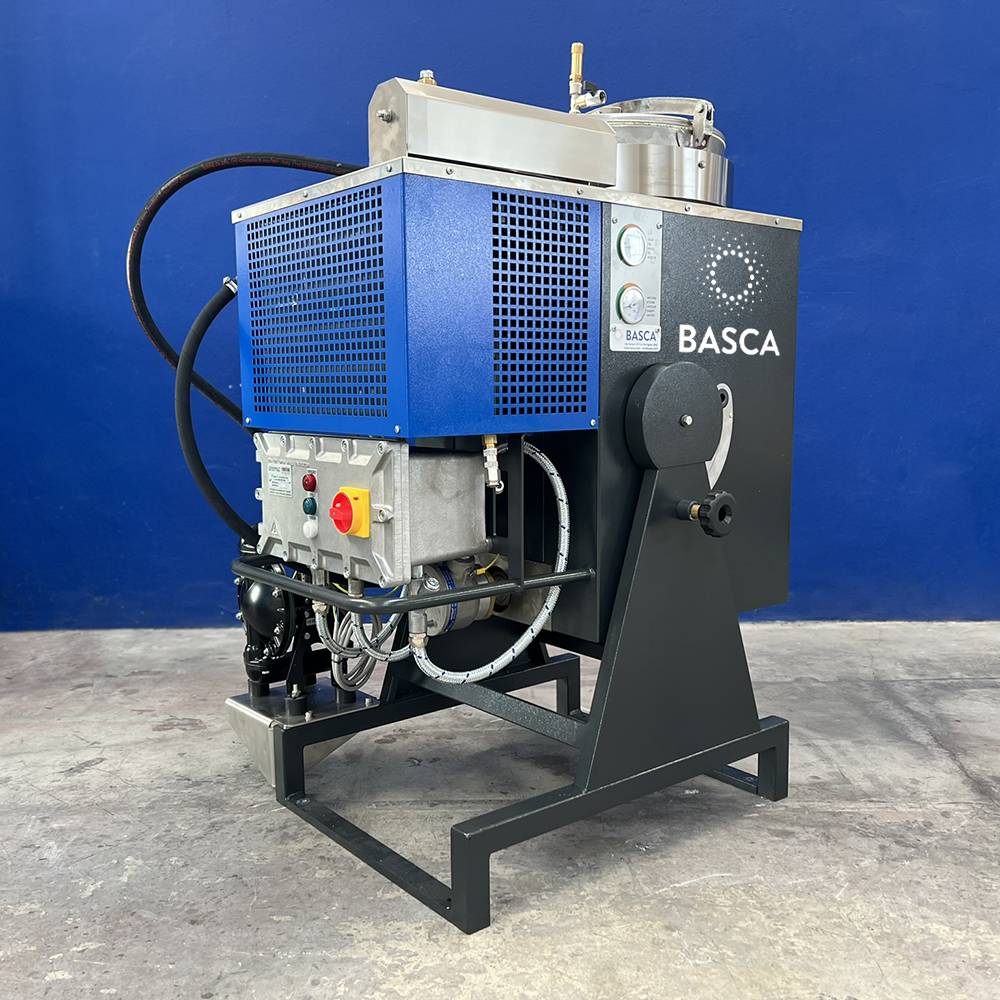

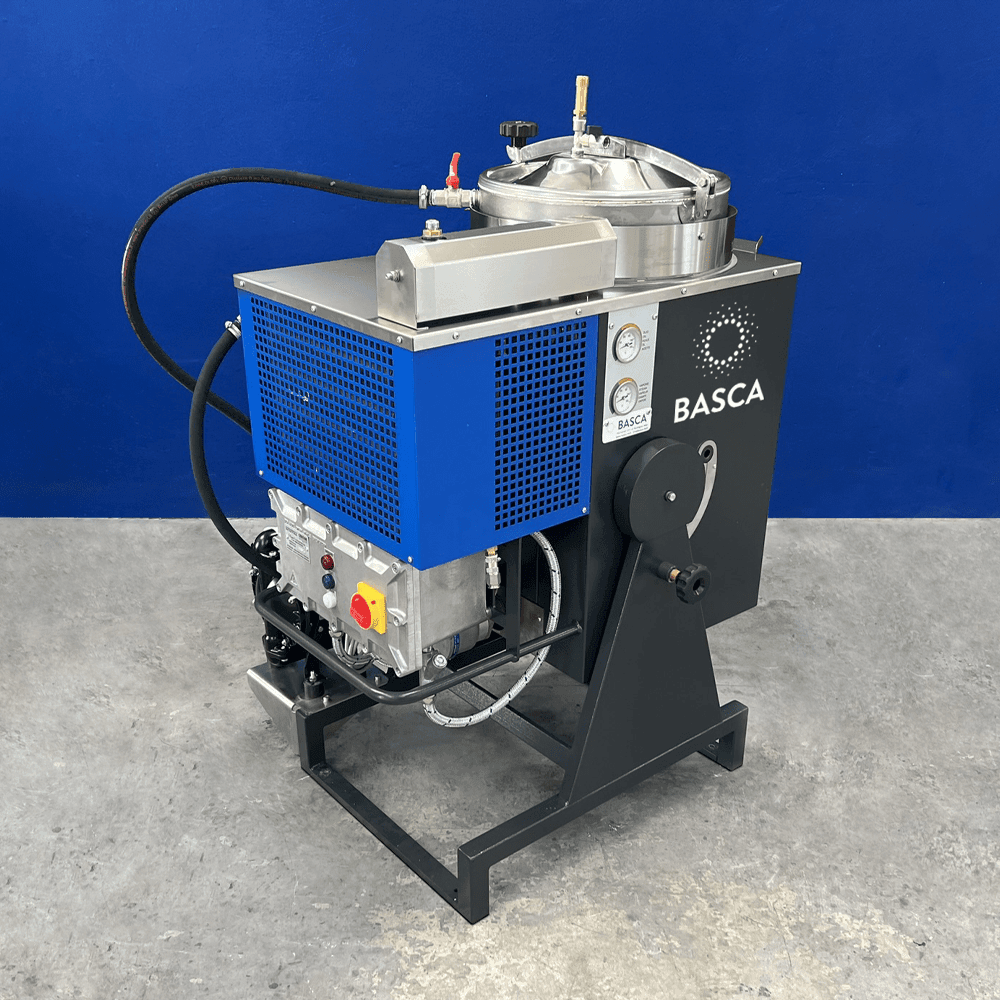

BascaRec S30/S60

Benefits

Less solvent consumption

Less waste disposal

Circular economy

Cost efficient

Improved safety on workplace

Less transferring and stocking of solvents

Process risk reduction

Compact layout

https://www.basca.tech/wp-content/uploads/2025/02/drop_small.png

BascaRec S30/S60Suitable for

Specification

Solvents

Size S30 (LxWxH): 800x600x1300mm

Size S60 (LxWxH): 800x600x1350mm

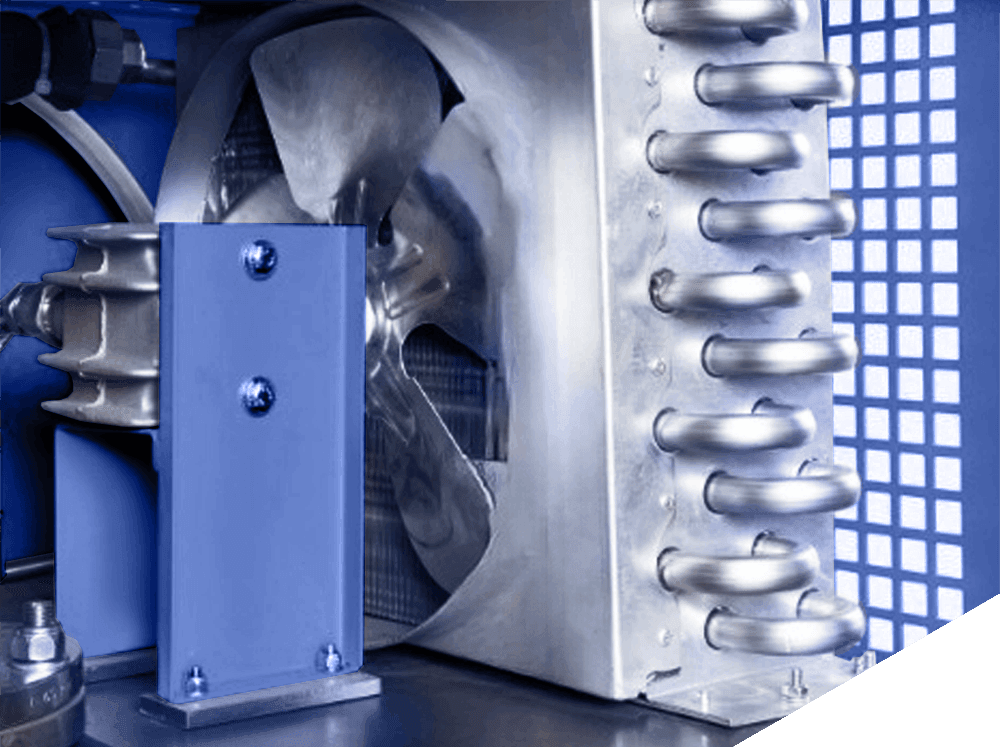

Air cooled cooper condenser

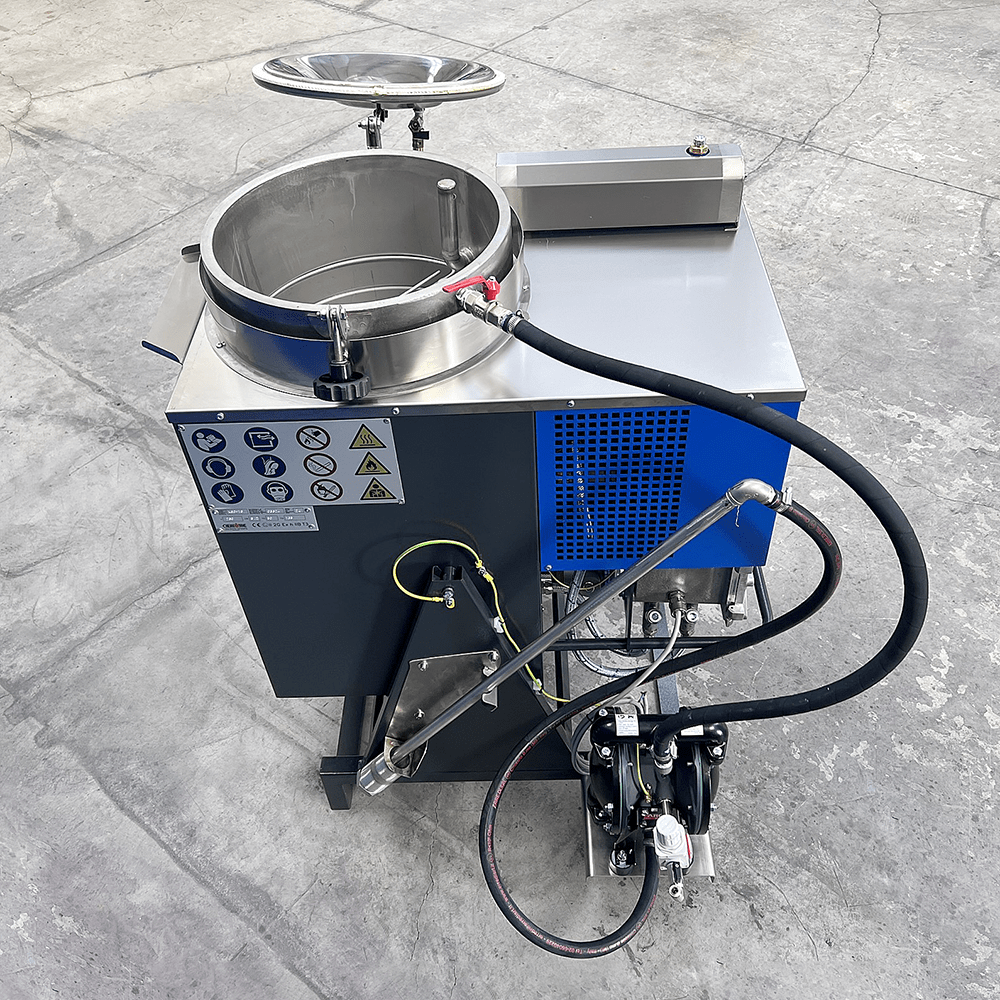

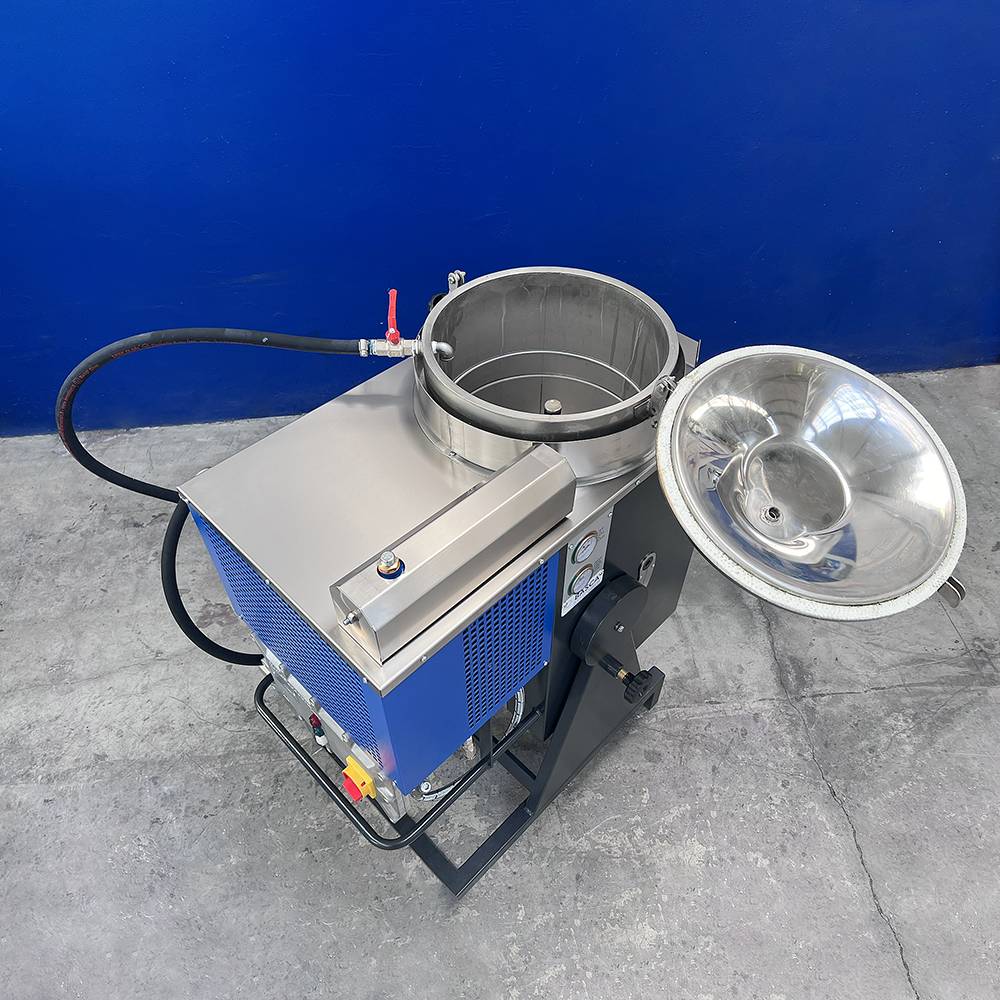

Stainless steel lid

Heating power: 2,5 kW to 8 kW

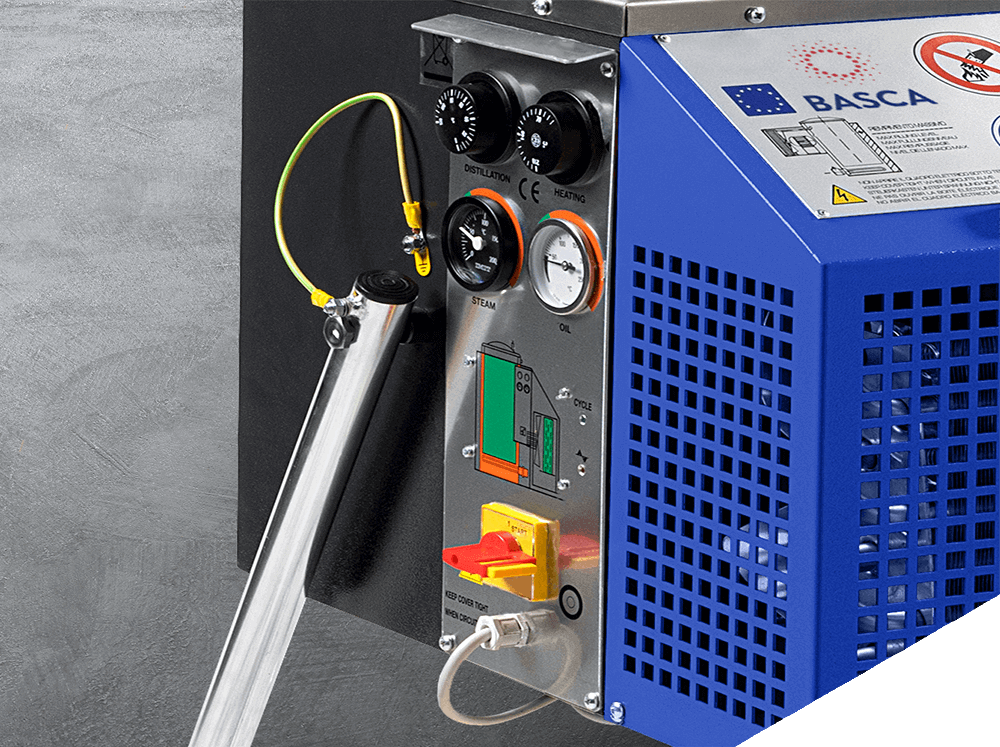

PLC controlled with intuitive color HMI

ATEX Ex II 2G (zone 1)

Production capacity: 30 to 200 L/day

Payback in 3 months

BascaWM

Download datasheet

Download

BascaRec S30/S60

Download datasheet

Discover the features and benefits of BascaRec S30/60, versatile and compact distillers for the recovery of waste solvents. BascaRec systems are developed for companies that need to regenerate the solvents used in their production process.

Download the brochure now!

System functionLoading the contaminated solvent

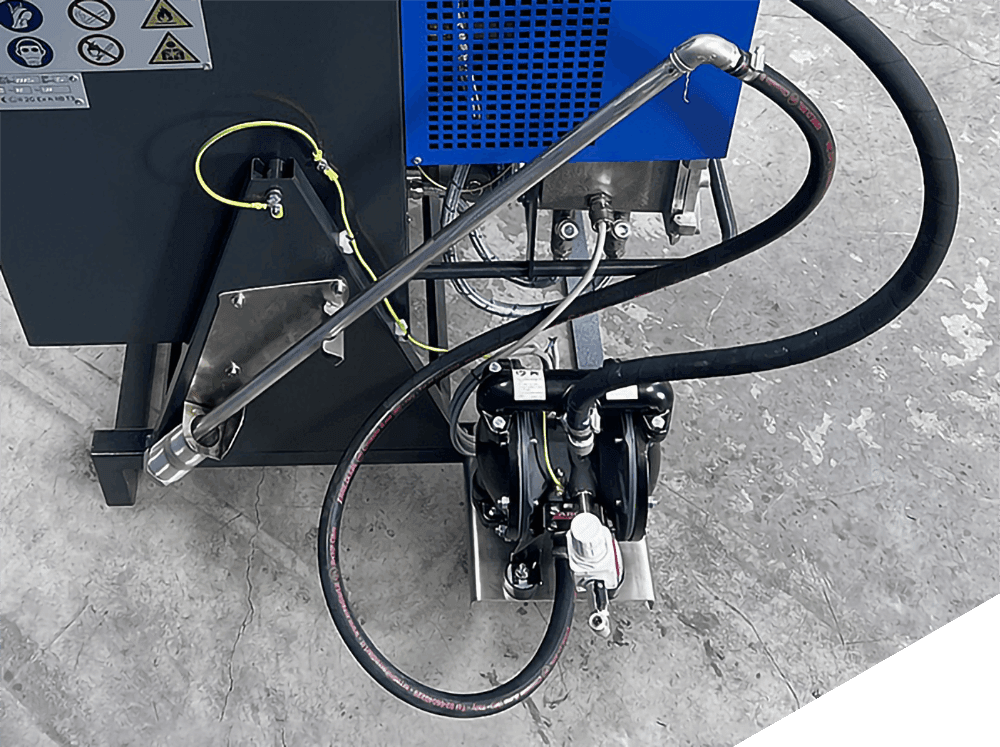

The operator pours the used solvent into the tank or via a transfer pump. This solvent typically contains residues from inks, paints, glue or other chemicals.

System functionHeating phase

Electric heating elements heat up the thermal oil in the double jacket of the boiling tank, which ensure safe and gradual temperature increase. The solvent is then brought to its boiling point.

System functionEvaporation and separation

Once the boiling point has been reached, the solvent begins to evaporate, separating from heavy residues such as ink, paint or chemical sludge. These contaminants stay in the boiler, while the clean solvent vapor continues through the process.

System functionCondensation

The vapor is routed into a condenser (air- or water-cooled), where it’s cooled and returned to liquid form. The distilled solvent is collected into a tank and is ready for immediate reuse.
